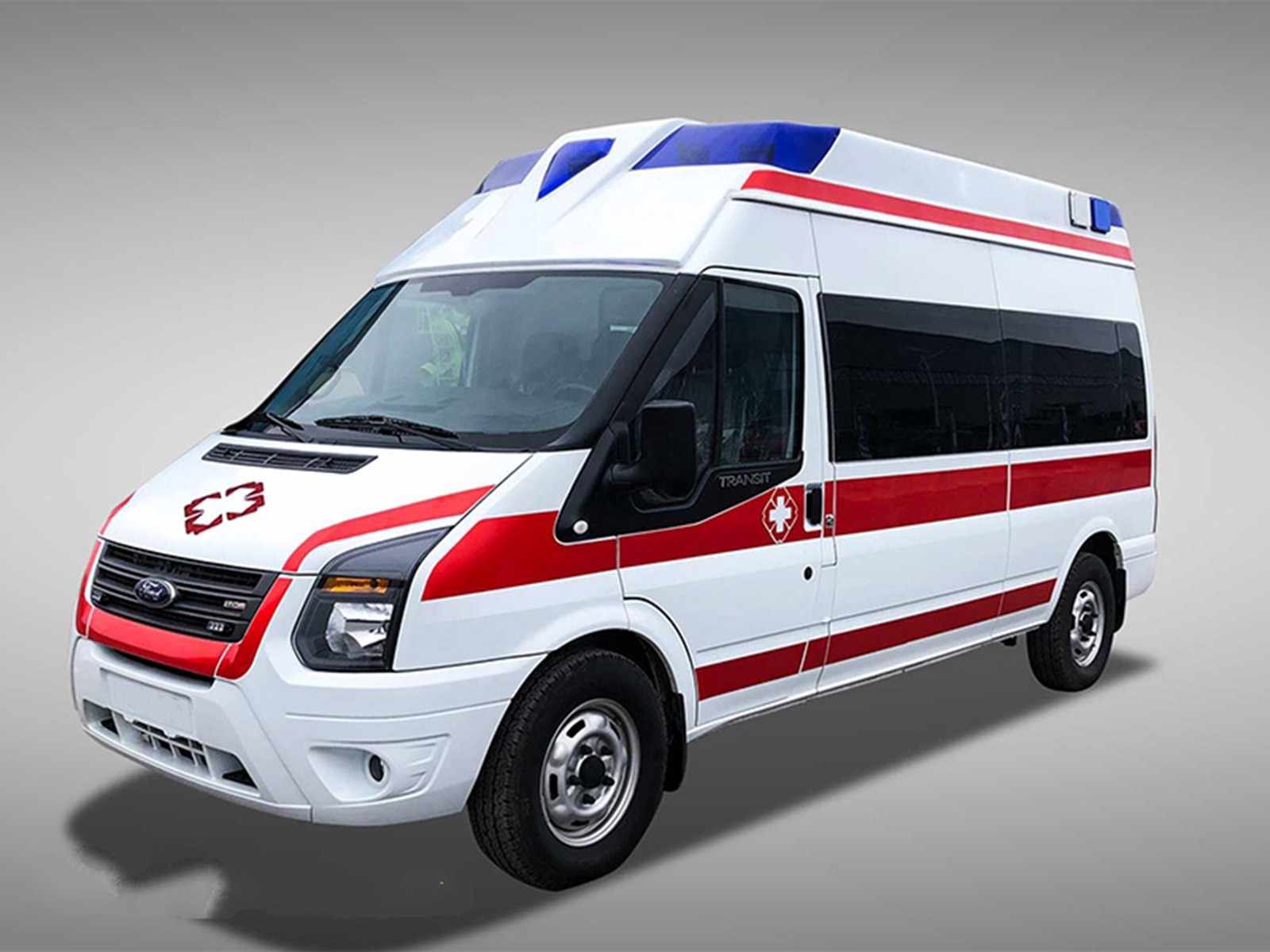

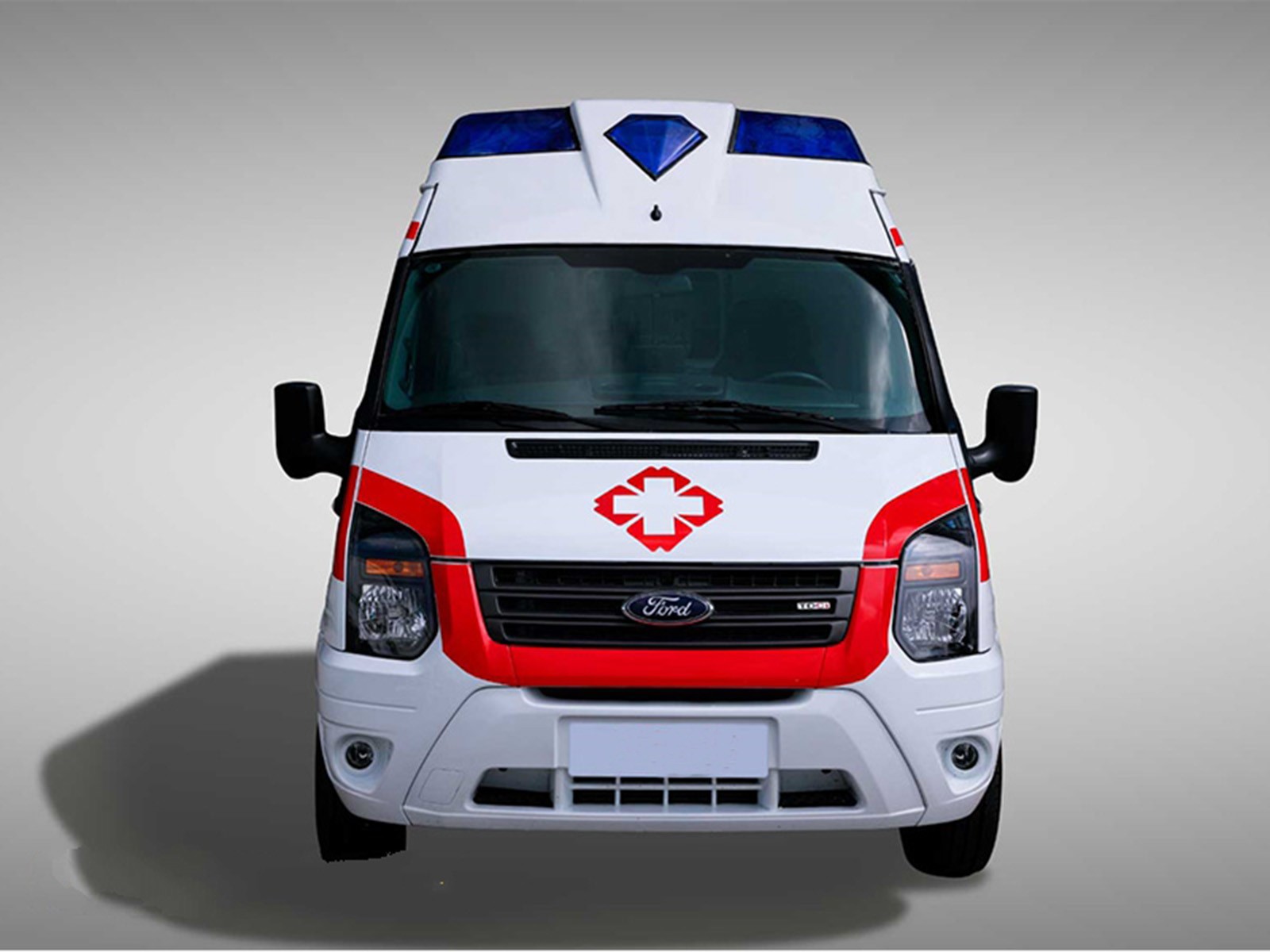

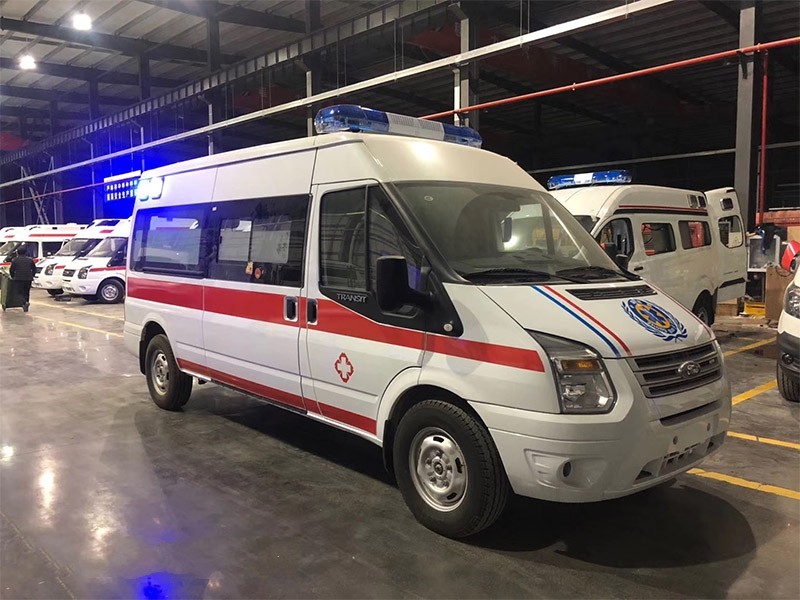

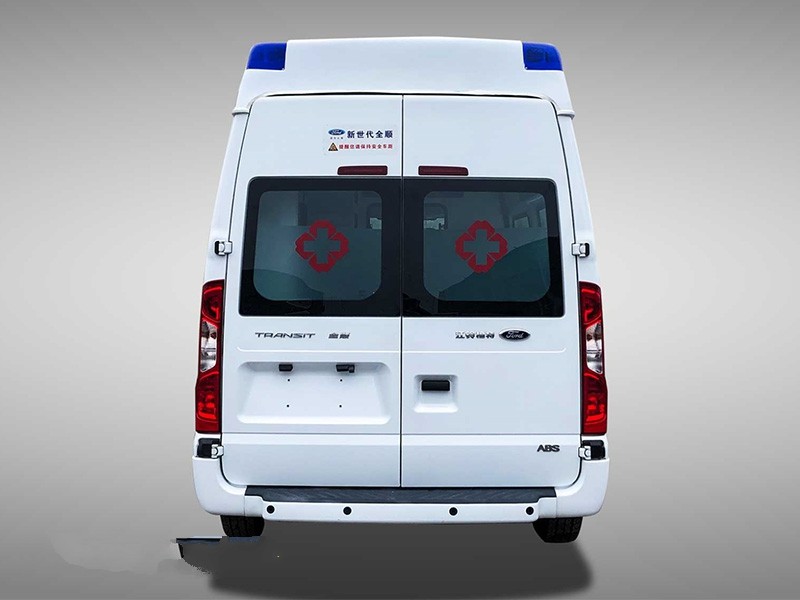

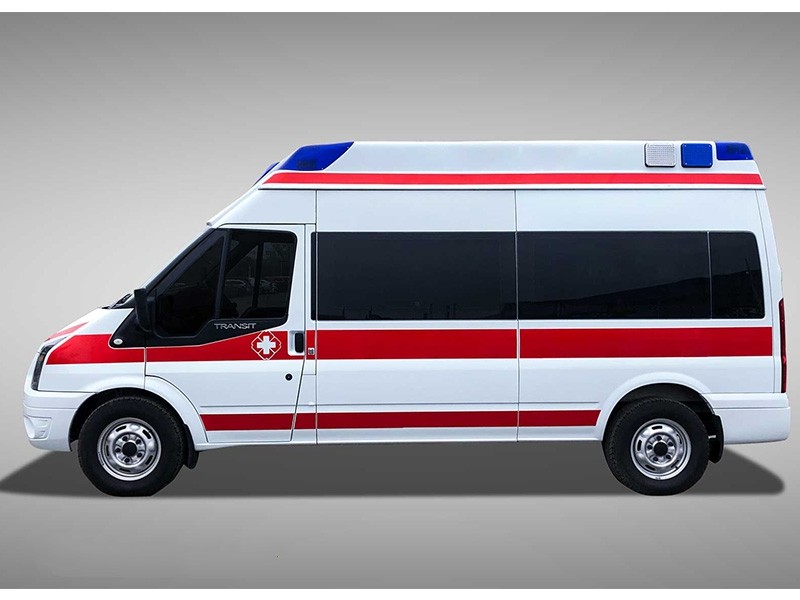

Ford High Quality Ward Type Ambulance
Dimension:5780×2000×2690mm
Chassis Brand: Ford
Horsepower:203hp(Euro 5)
Oxygen Supply System: One 10-liter oxygen cylinders; One directly connected oxygen cylinder with oxygen pressure reducing valve
First Aid: Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher
Brief Introduction |
FORD Ambulance Car is also called ambulance car, it is one vehicle for treatment,monitoring and transport of critically ill patients.It is widely used to all levels medical institutions.Suitable for common patients′transmission, patients who need to be rescued at once with perfect medical equipment on vehicle and infected patients with unknown virus.
Product Parameters |
Chassis Specification | ||
Vehicle model | FORD V348 | |
Ambulance Van dimension (mm) | 4*2 Left hand driving | |
Max Speed (km/h) | 156 | |
Overall dimension（mm） | 5341×2032×2480 | |
Ambulance Van dimension (mm) | 2680×1730×175 | |
GVW（kg） | 3300 | |
Mass in working order（kg） | 2530 | |
Wheelbase（mm) | 3300 | |
Tire | 215/75R16LT | |
Clutch | Single-plate dry diaphragm spring clutch | |
Steering | Hydraulic steering with power assistance | |
Gear box | 5-Speed gear box | |
Suspension | Front | Front McPherson independent suspensio |
Rear | Rear suspension leaf spring without independent suspension | |
Engine | Model | ECOBOOST4G2OB5L |
Type | 2.0T In-line four cylinder supercharged cold cylinder direct injection | |
Exhaust（ml） | 1997 | |
Max output power (hp） | 203 | |
Fuel Type | Petrol | |
Emission standard | Euro5 | |
Brake system | Service Brake | Air brake and dish brake |
Park Brake | Spring energy | |
Electric system | 24V | |
Upper-Body Specification | ||
Basic configuration | Medical warehouse air conditioning and heating | |
Circuits and medical appliances | Alarm and warning system | Long Row Standard Police Lights ; 100 watt siren and handheld control |
Power supply system | 500 watt power inverter;220V power port | |
Control system | Medical warehouse seesaw control switch | |
Oxygen supply system | One10-liter oxygen cylinders, special shock-absorbing clamps; One directly connected oxygen cylinder with oxygen pressure reducing valve | |
Medical warehouse interior | Original car interior;Partition wall;Push-pull observation window on the partition wall; Pill cabinet behind the partition wall;Fixed oxygen cylinder beside the pill cabine; Long seat belt and seat belt pre-buried, medical floor leather | |
Seat system | Two seat long soft seat on the right; one forward seat on the right | |
First aid | Automatic loading stretcher&Fire extinguisher; Sliding infusion stand with 2 sets of infusion bottle hook | |
Exterior | Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors. | |
| Competitive Advantages |
1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you
2. 2.2T large diesel exhaust, high speed for transportation
3. Engine use German Continental company newest technology
4. Gearbox use German GFT 6-speed, equipped with Multicone synchronizer,the noise is greatly reduced
5. Install satellite positioning and vehicle video surveillance to fully meet the requirements of the new first aid regulations
6. Ambulance equipped with complete medical equipment with economic price
7. Chassis is American high quality brand FORD TRANSIT
