4X2 ISUZU 700P Oil Tank Truck 8000L with Good Quality

4X2 ISUZU 700P Oil Tank Truck 8000L with Good Quality

Chassis Brand:ISUZU 700P
Fuel Tank Capacity:8000L
Horsepower:190hp
Tank material:Carbon steel (stainless and aluminum optional)
Storage:oil ,fuel ,diesel
Filling system:Bottom filling system

Brief Introduction

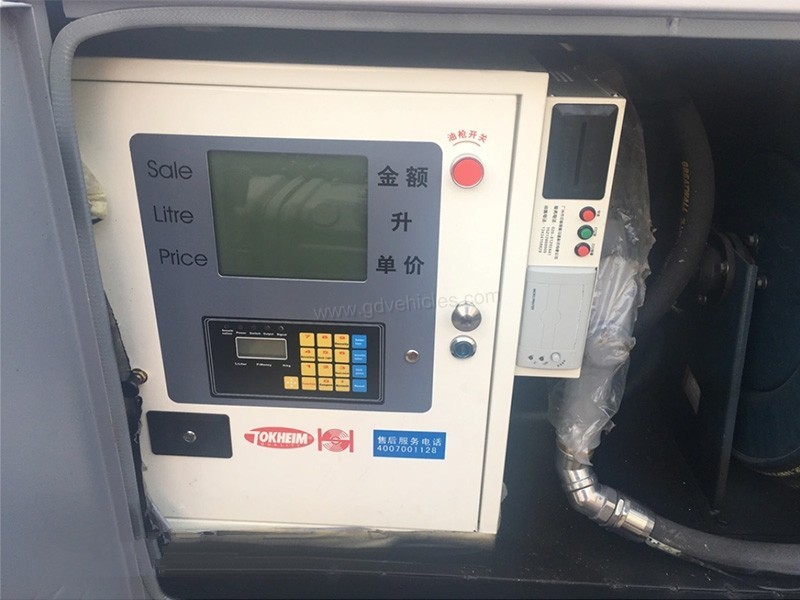

This fuel tanker truck has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is with great flexibility. According to different needs, it is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station. The fuel tanker truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station.

Product Parameters

Truck Specification
Cab			ISUZU 700P CABIN
Driving Type			4*2 Left hand driving
Max Speed (km/h)			99
Overall dimension（mm）			794021902580
GVW（kg）			12000
Mass in working order（kg）			5540
Tank Capacity (L)			12000
Wheelbase（mm）			4475
F/R track base（mm）			1960/1855
F/R overhang（mm）			1110/2000
Approach/Departure Angel			17/13
Tire			235/75R17
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			MLD 6-speed
Bridge	Front axle		4T
	Rear axle		7T
Engine	Model		4HK1-TC51
	Fuel Type		Diesel fuel
	Type		Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust（ml）		5913
	Max output power (hp)		190
	Emission standard		Euro 5
Braking system	Service Brake		Compressed air brake
	Park Brake		Spring energy
	Auxiliary brake		engine exhaust brake
Electric system			24v
Upper-Body specification
Volume of tank		8m3
Tank shape		Quadrate
Material of tanker		5mm carbon steel
Color of the tanker		According your demands
Transport medium		Diesel oil, gasoil or others

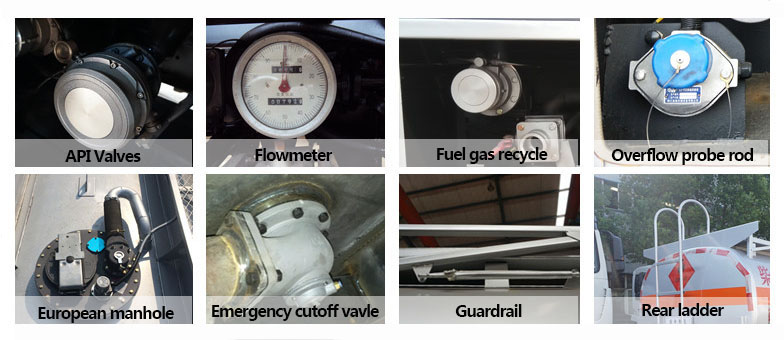

Fittings		PTO oil pump
		An aluminum alloy European standard manhole

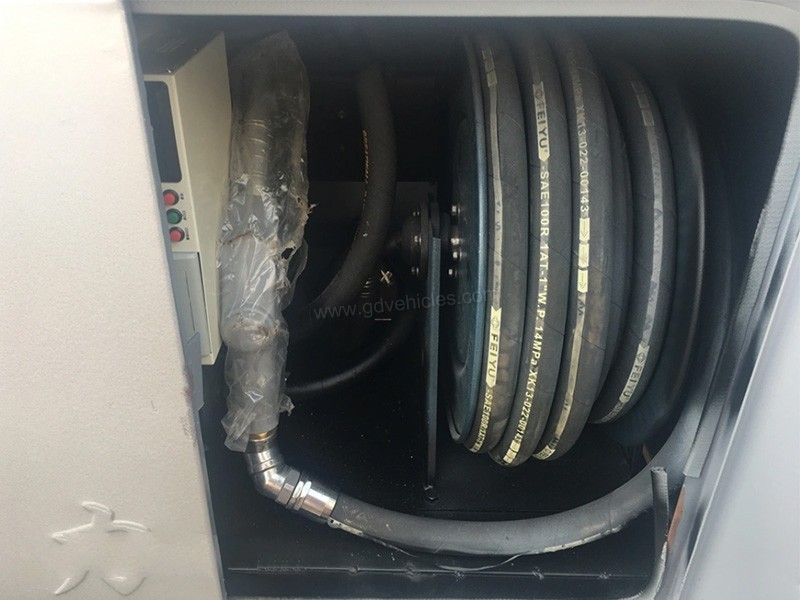

		Fuel hose box fitted on both side of tank
		An aluminum alloy sea valves
		Two Fire extinguisher
		One spare tyre
		Ladder: For access to top of tank complete with cat walk on top of tank
		Heavy-duty rear bumper

Applications

Fuel tank truck (also called fuel dispensing truck ,oil transfer truck ,diesel truck ,petrol fuel tanker ,crude oil tanker truck , refueler tanker truck ,diesel fuel tanker ,oil tanker ) is used to transport oil , diesel , gasoline ,kerosene,etc. It can be divided into many compartments to transport different types of fuels ,lubricant ,crude oil, alcohol. Oil pump equipped ,with pump in pump out function.
