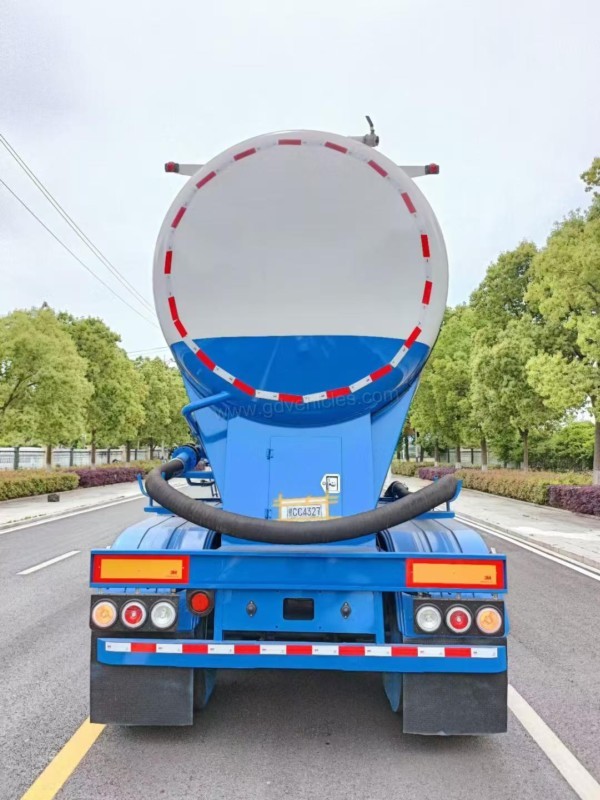

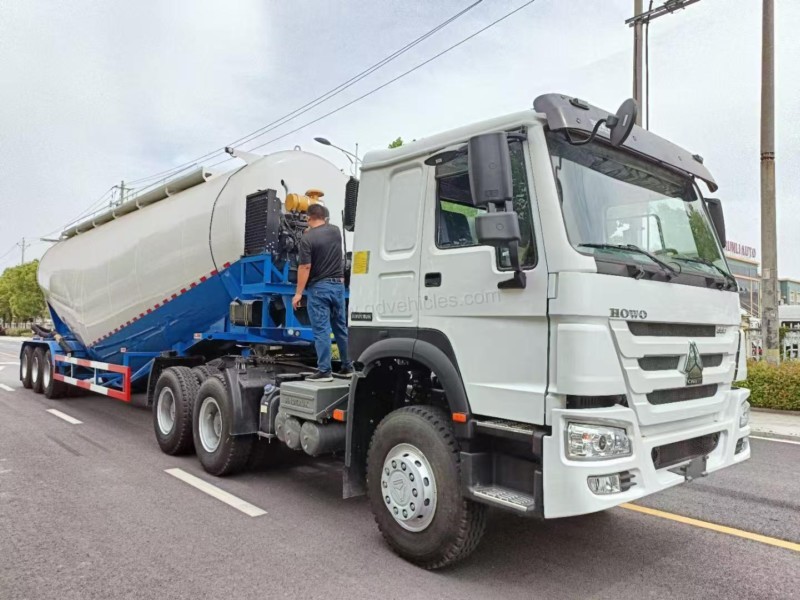

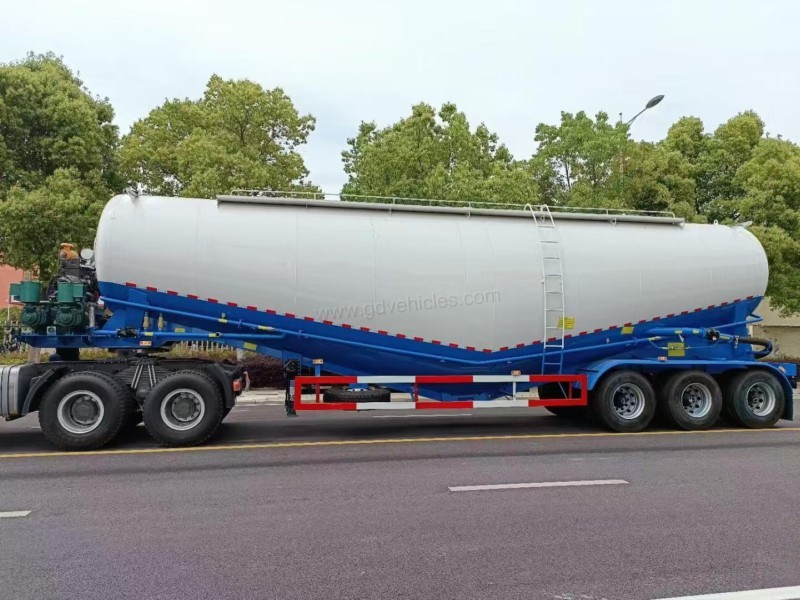

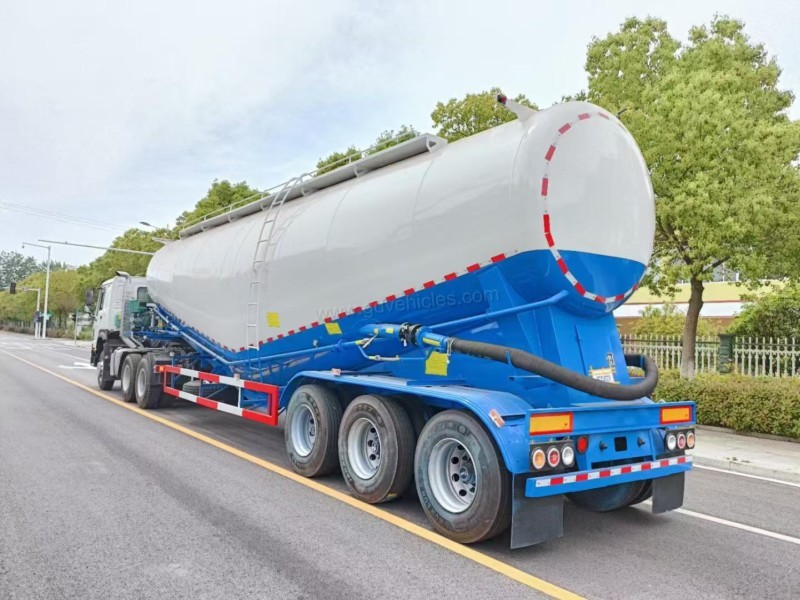

3 Axles Powdered Material Transport Tank Bulk Cement Trailer 65CBM
Dimension: 13*2.5*3.9m (outside)
Capcaity: 65 cbm or customized
Shape : V shape
Diesel Engine: WEICHAI
Axle: 3 axles
Suspension: Mechanical / Air bag
Tire: 12R22.5; 315/80R22.5; 12.00R20
Brief Introduction
The cement bulker tanker trailer uses robust carbon or stainless steel for durability and safe transport. This material protects the trailer from harm and keeps it safe during transit.
The cement tanker trailer is composed of tank, chassis, air compressor, and unloading system. Adopt advancedwelding techniques to make the tank tight and reliable, preventing leaks and material loss.
The cement bulker’s chassis is strong,handling heavy loads for safety. The air compressor helps unload materials, using methods like compressed air or hydraulics tailored to material types.
Product Parameters
Specification | |
Trailer Model | Bulk Cement Semi-Trailer |
Overall Dimension(mm) | 13000mmx2500mmx3900mm |
Shape | V shape |
Capacity | 65M3 |
Tanker Body thickness | 5mm Carbon Steel Material/ 4mm Manganese Material |
End Plate thickness | 6mm Carbon Steel Material |
Manhole Cover | 3Pcs |
Air Compressor | WUHU FUDA/YANBIAN BOHAI 12 cbm double-cylinder |
Diesel Engine | WEICHAI 4102 |
Discharge valve | 3 or 4 inch |
Discharging pipe | 3 or 4 inch rubber hose,1 pcs |
Welding standard | All welding are to be done by qualified welder per applicable national standard |
Chassis | |
Main Beam | Carbon steel material |
Axle | 3 axles, Fuwa brand |
Landing Gear | JOST brand two-speed,manual operation,heavy duty landing gear |
King Pin | 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension Or air suspension |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer |
Pneumatic Braking System | Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve |
Tire | 12R22.5*12Pcs |
Ladder | Equipped at the rear of the tank |
Walkway | Anti-Skid Walk Way from Rear to First Manhole |
Handrail | 800mm Height,Pneumatic Controlling |
Mud Guard | Steel Mud Guard |
Spare wheel carriers | 1pc |
Tool box | 1pc |
Painting | Complete Chassis sand blasting to clean rust, 2 coat of anti corrosive prime, 2 coats of final paint |
Competitive Advantages
1) Frame and kingpins: the frame is a steel space frame low-welded structure.
2) The triaxial suspension uses leaf springs to support weight and dampen road bumps.
3) The brake system includes semi-double pipe pneumatic brakes and ABS for safety.
4) Electrical system: The tractor-trailer has adapted to an international common electrical system.
5) External power and air compressor: Diesel engine and Bohai/Fuda Compressor ensure enough air pressure (4102) for unloading vehicles.

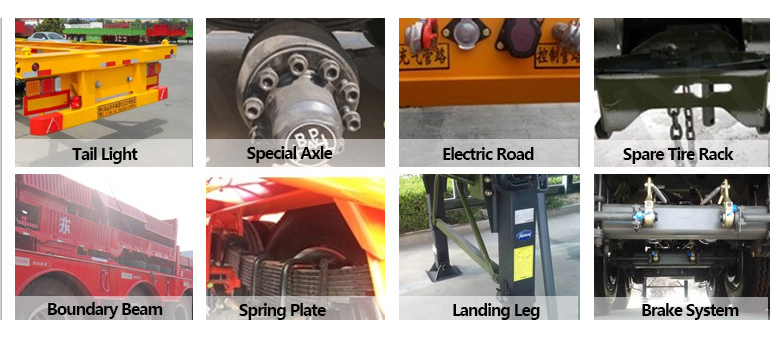

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
